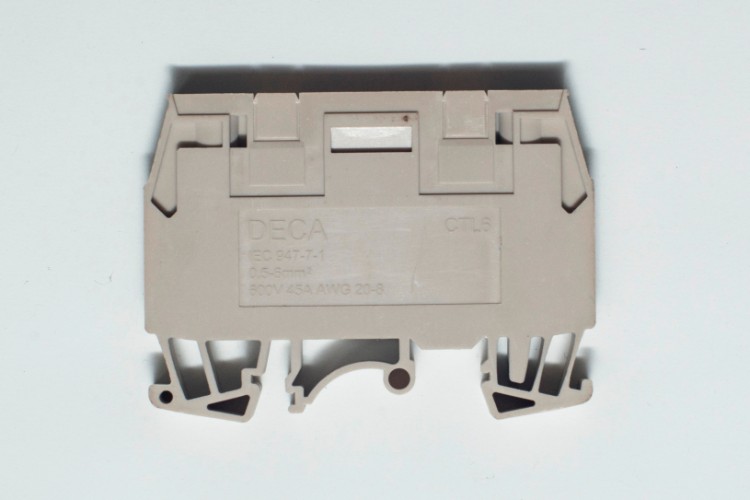

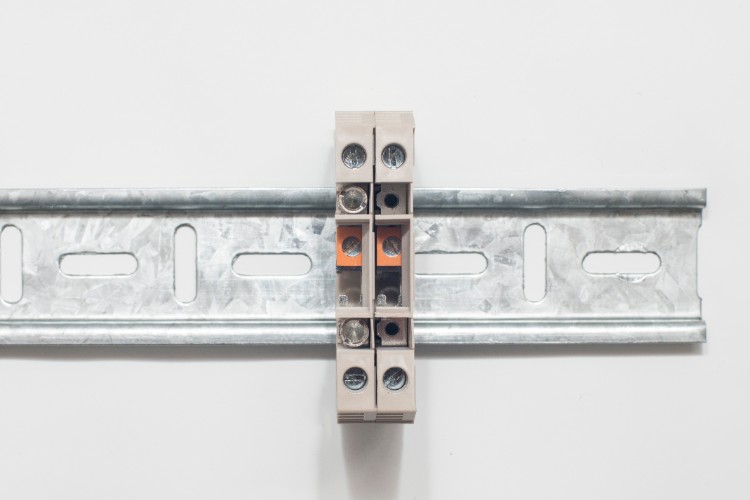

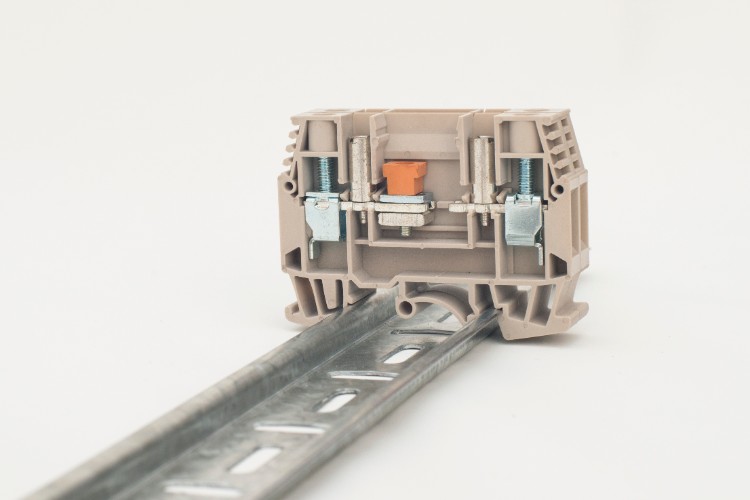

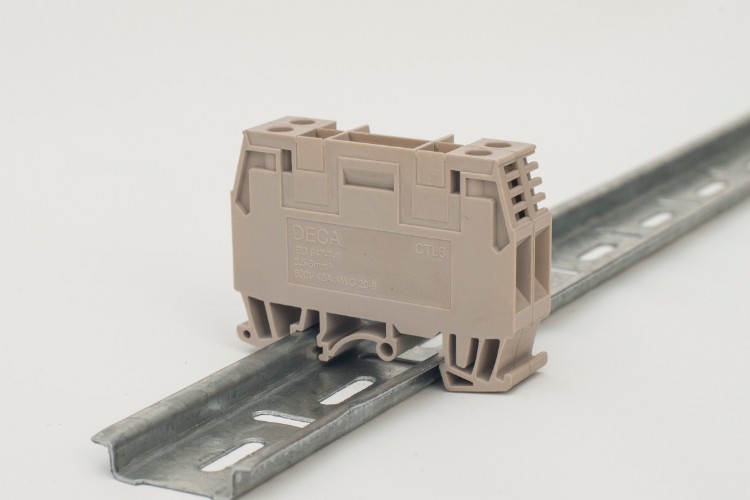

Bornes de conexión de paso con contactos a tornillos Modelo CTL 6
Especificaciones Técnicas
| Especificaciones | CTL6 | |
|---|---|---|
| UL | Rated Voltage | 300V |
| UL | Rated Current | 45A |
| UL | Wire Size | AWG 8-22 |
| CSA | Rated Voltage | 300V |
| CSA | Rated Current | 45A |
| CSA | Wire Size | AWG 8-22 |
| IEC | Rated Voltage | 800V | IEC | Rated Current | 41A | IEC | Wire Size | 0.5-6mm² |
| Insulating impulse voltage withstand | 6KV | |
| Pollution degree | 3 | |
| Torque | 12 | |
| Clamping Screw | M4 | |
| Insulation Stripping Length | 13mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 8x65.5x48.5 |
| Rail Dimensions | For TS35x15 | 8x65.5x56 |
Accesorios
| Accesorios | CEW35/2, SEW35,CEP8,CEP9, CQB6/2, CQB6/3, CQB6/4, W6, W6Z, W6K, W8, W8Z, W8K, TPS4(Ø4), TP4, DS4 |
|---|
