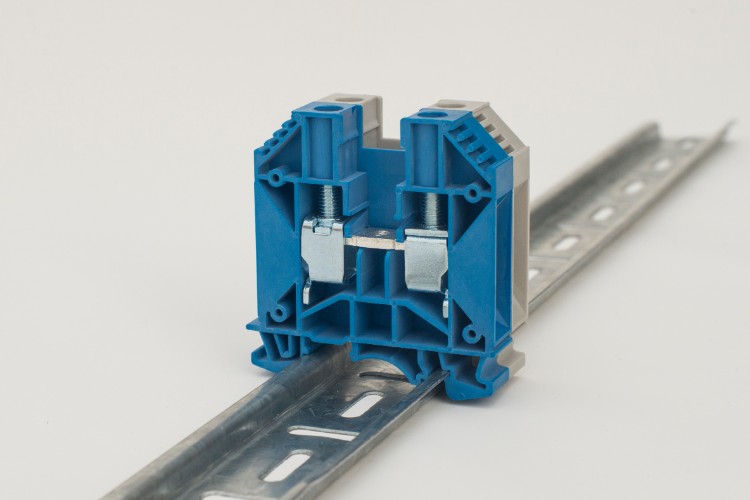

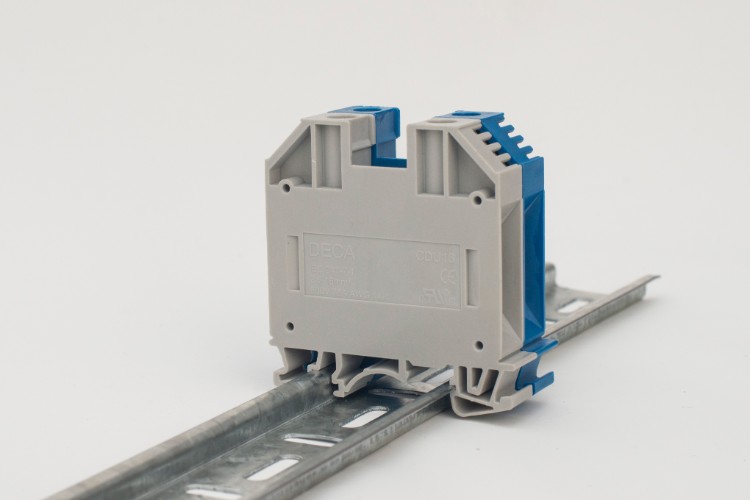

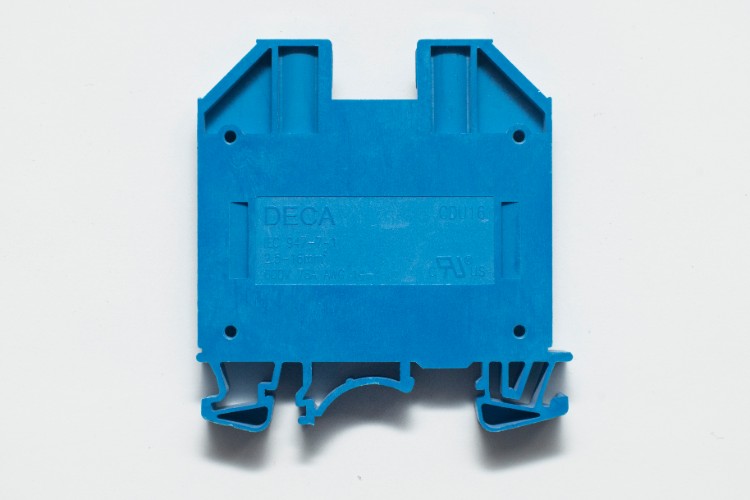

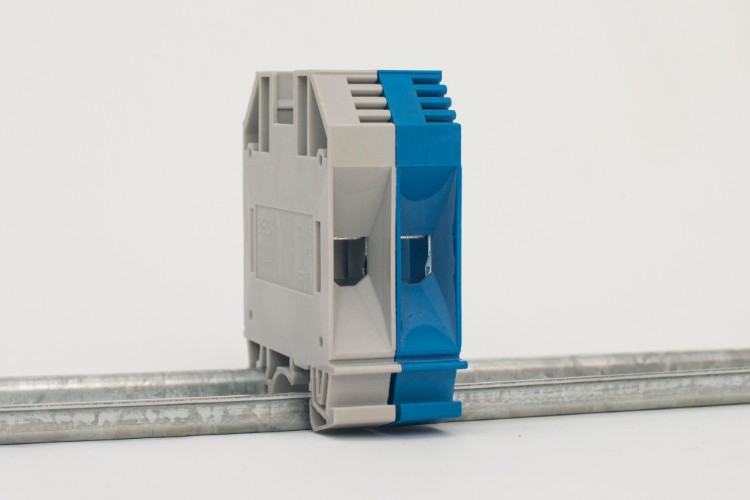

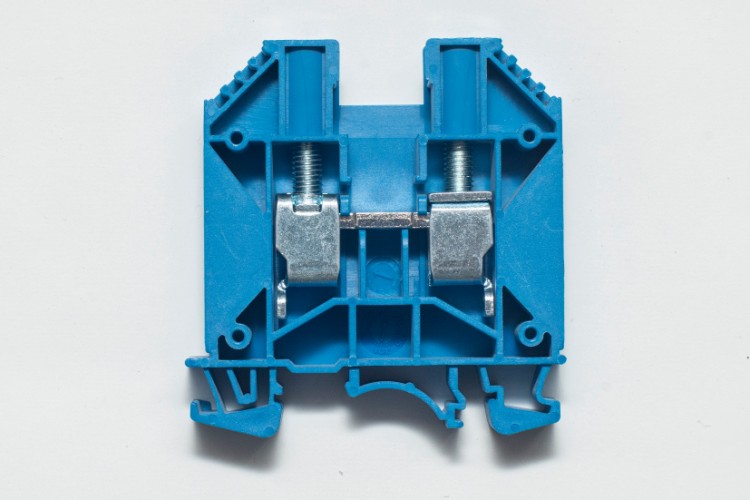

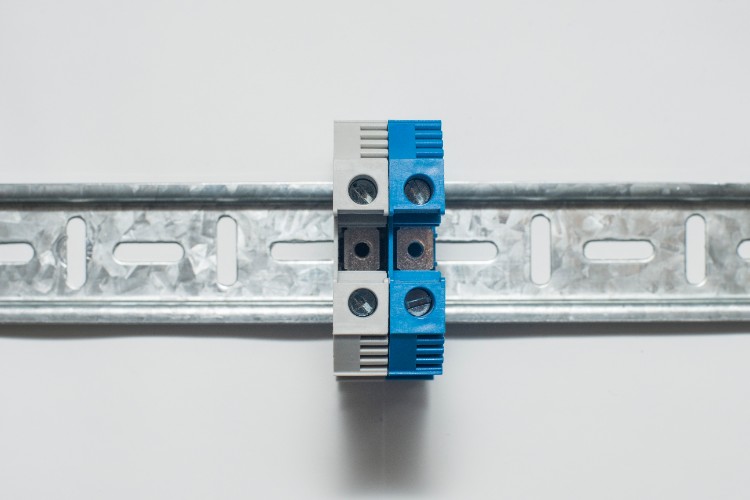

Bornes de conexión de paso con contactos a tornillos Modelo CDU 16
Especificaciones Técnicas
| Especificaciones | CDU16 | |
|---|---|---|
| UL | Rated Voltage | 600V |
| UL | Rated Current | 78A |
| UL | Wire Size | AWG 4-14 |
| CSA | Rated Voltage | 600V |
| CSA | Rated Current | 78A |
| CSA | Wire Size | AWG 4-14 |
| IEC | Rated Voltage | 1000V | IEC | Rated Current | 76A | IEC | Wire Size | 2.5-16mm² |
| Insulating impulse voltage withstand | 8KV | |
| Pollution degree | 3 | |
| Torque | 31 | |
| Clamping Screw | M5 | |
| Insulation Stripping Length | 15-17 mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 12x60x63.5 |
| Rail Dimensions | For TS35x15 | 12x60x71 |
Accesorios
| Accesorios | "SEW35, CEW35/1, CEP2, CQV16/2, CQV16/3, CQV16/4, CQB16/2, CQB16/3, CQB16/10,WS-16, W6, W6Z, W6K, W8, W8Z, W8K, TPS4(Ø4), TP4, DP1, AD2. DS4 |
|---|
