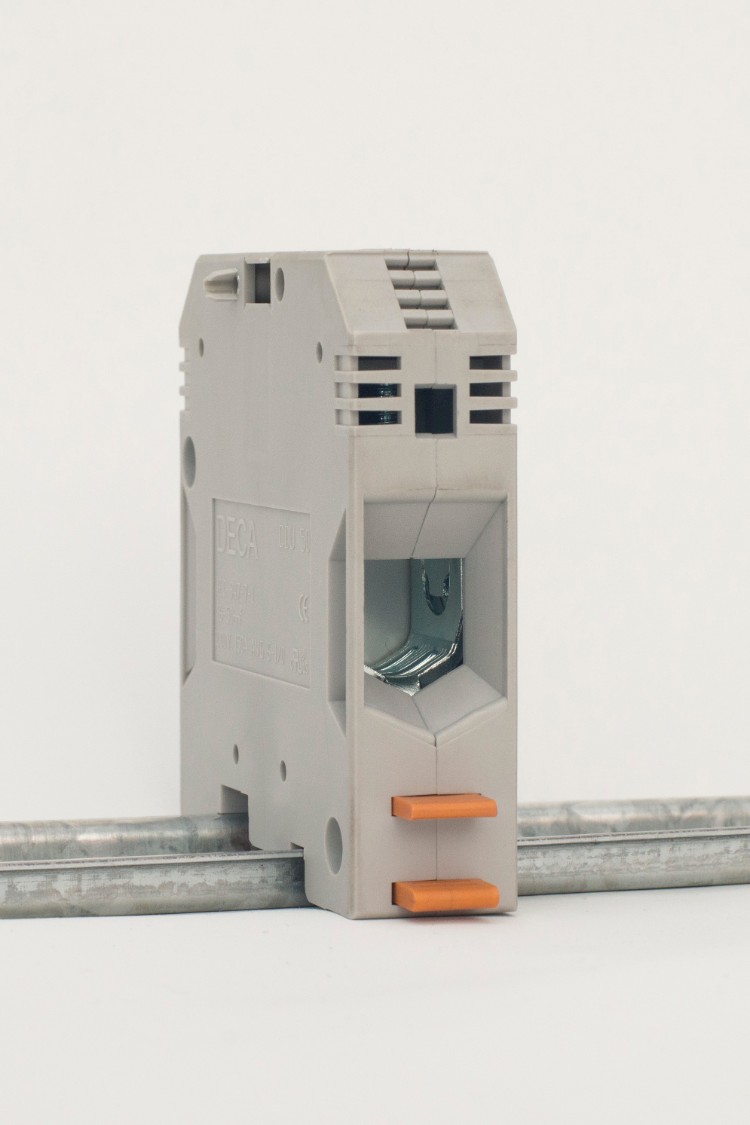

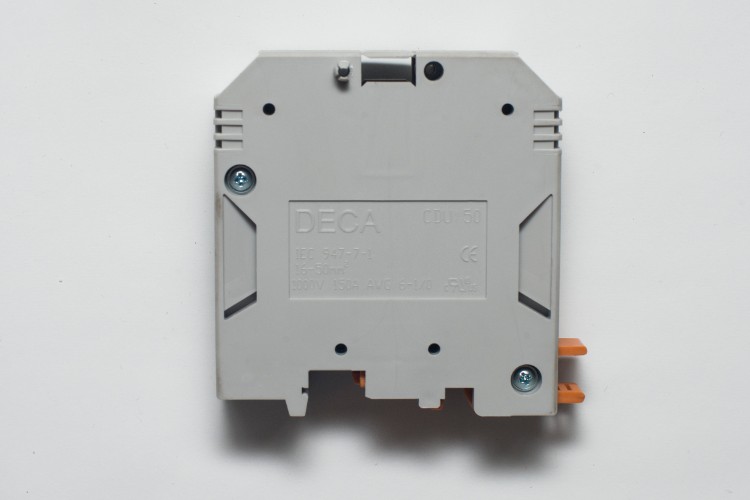

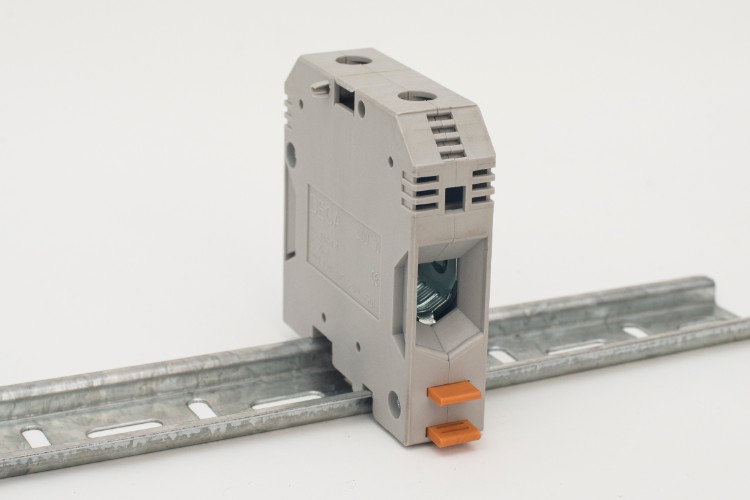

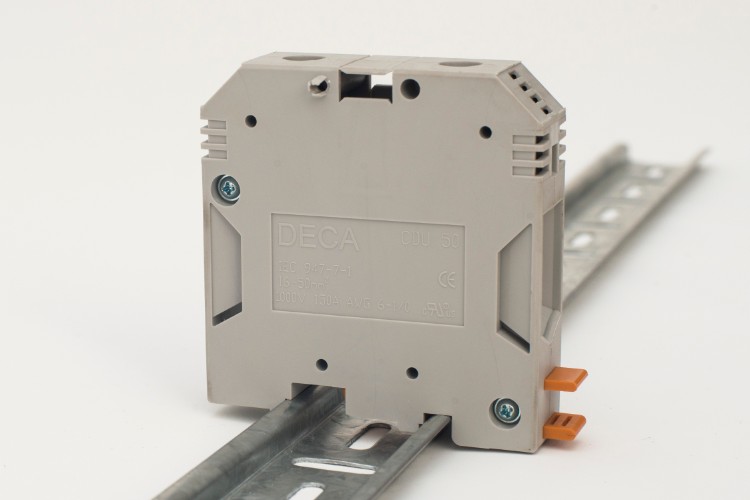

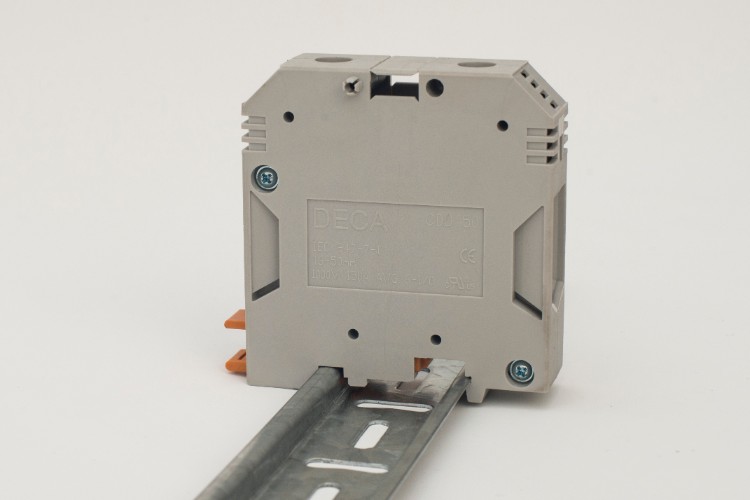

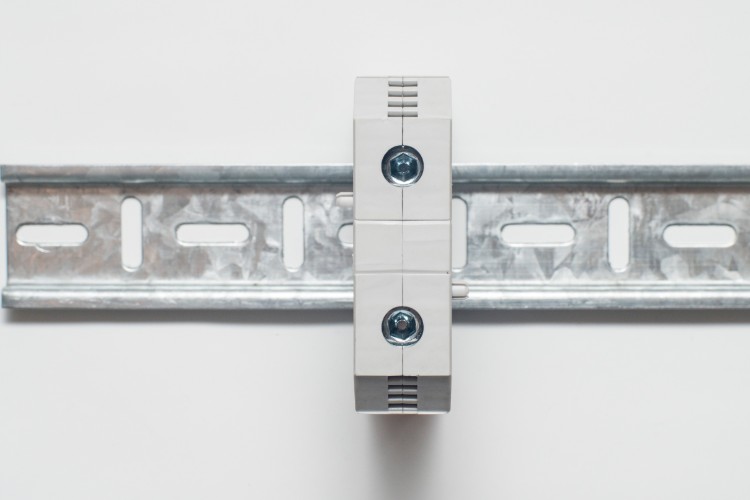

Bornes de conexión de paso con contactos a tornillos Modelo CDU 95
Especificaciones Técnicas
| Especificaciones | cdu95 | |
|---|---|---|
| UL | Rated Voltage | 1000V |
| UL | Rated Current | 230A |
| UL | Wire Size | AWG 4/0-2 |
| CSA | Rated Voltage | 1000V |
| CSA | Rated Current | 150A |
| CSA | Wire Size | AWG 4/0-2 |
| IEC | Rated Voltage | 1000V |
| IEC | Rated Current | 232A |
| IEC | Wire Size | 35-95mm² |
| Insulating impulse voltage withstand | 8KV | |
| Pollution degree | 3 | |
| Torque | 150 | |
| Clamping Screw | M8 | |
| Insulation Stripping Length | 30-35mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 25x80x90 |
| Rail Dimensions | For TS35x15 | 25x80x97.5 |
Accesorios
| Accesorios | "SEW35, CEW35/1, CQV50/2, CQV50/3, CQB50/2, CQB50/3, W6, W6Z, W6K, W8, W8Z, W8K, DK5 |
|---|
