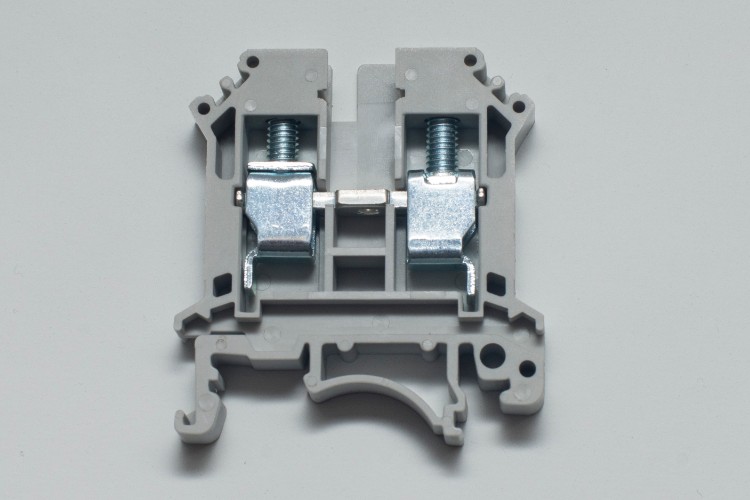

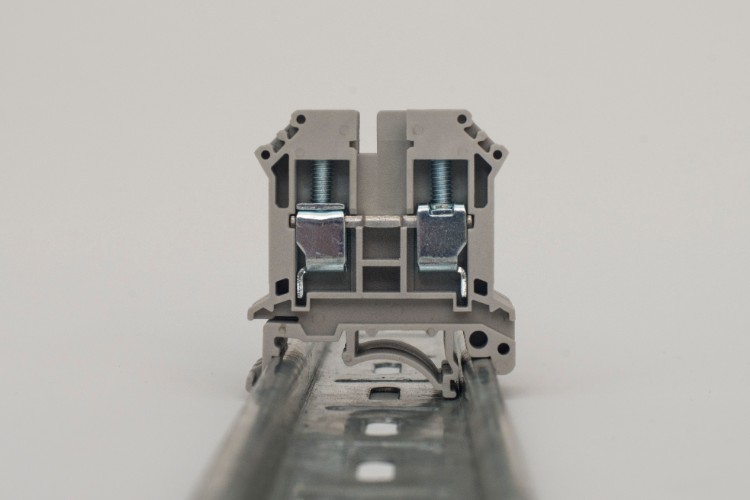

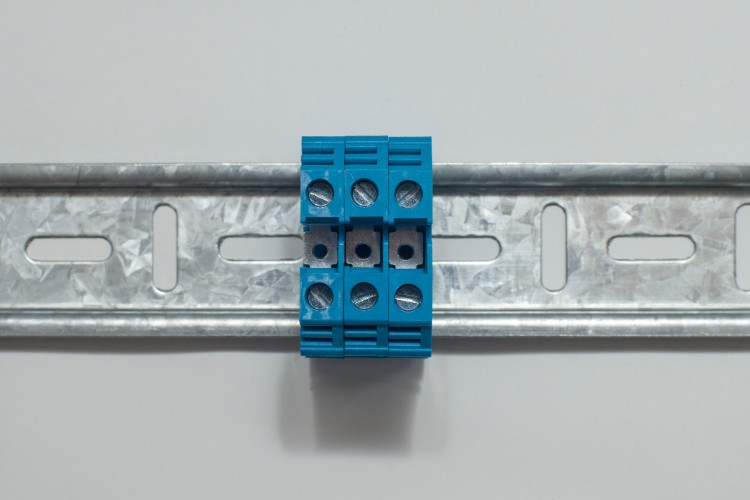

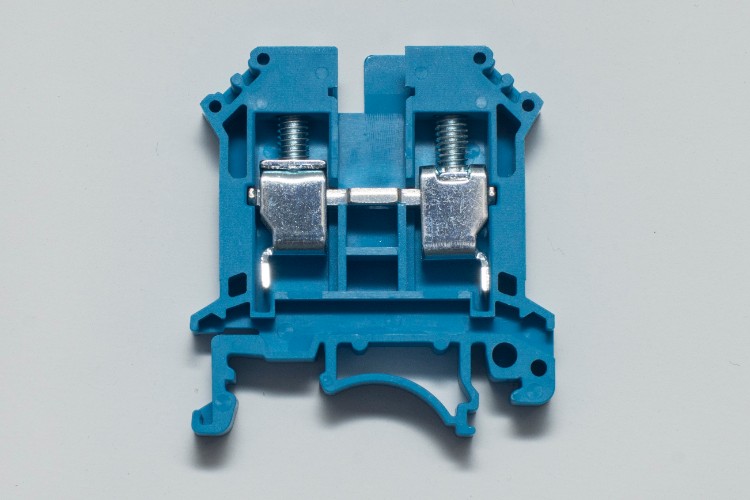

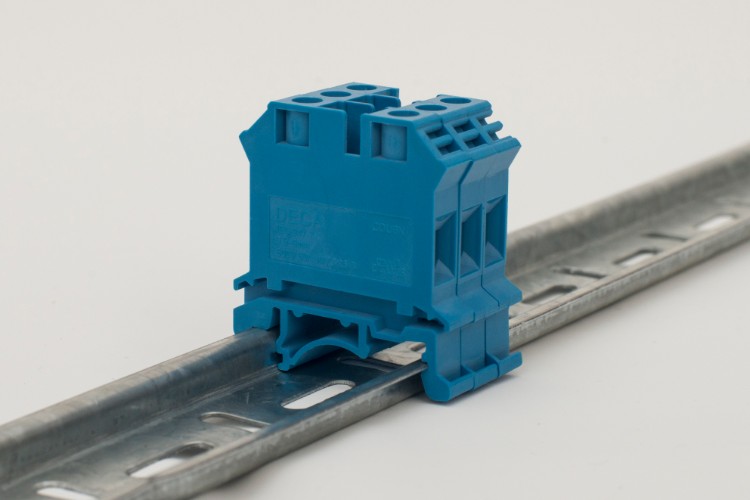

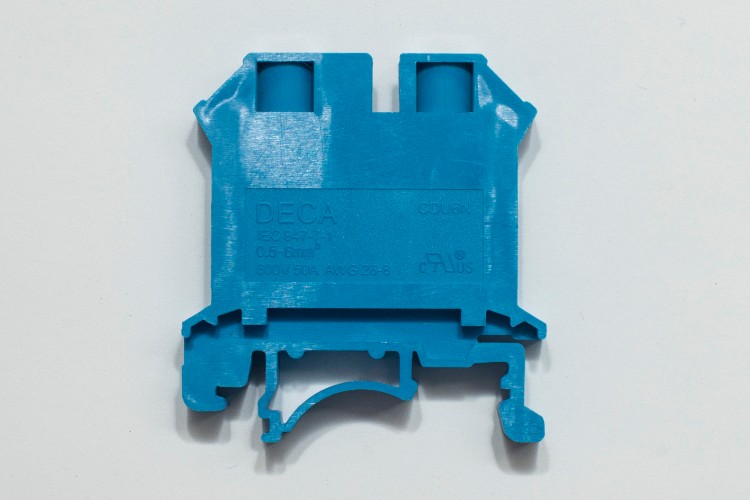

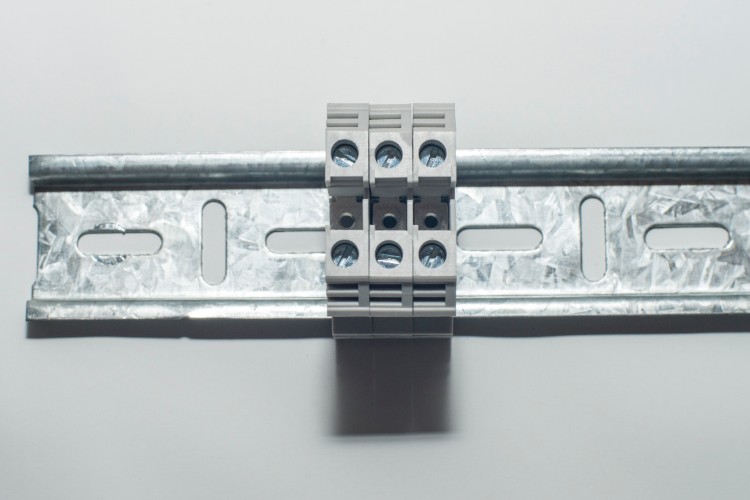

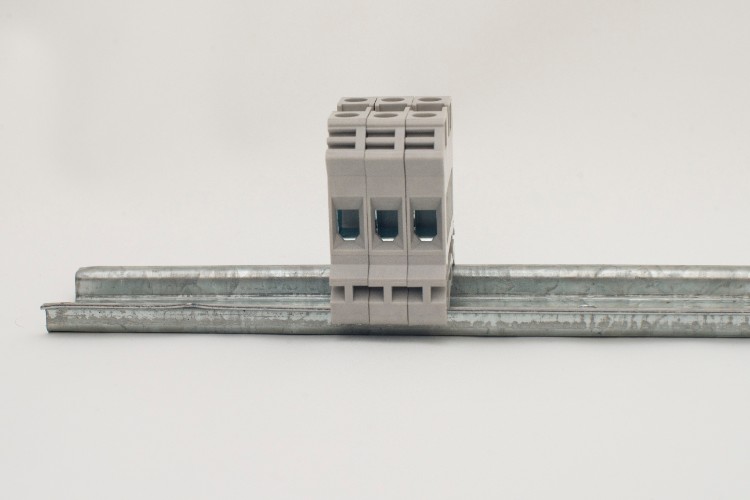

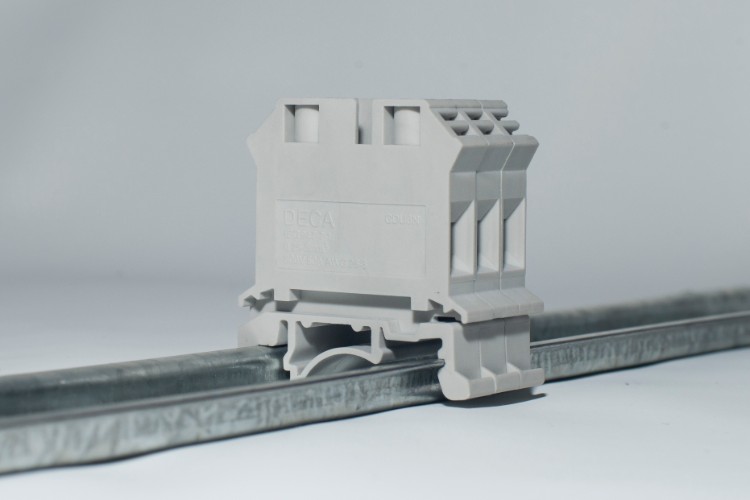

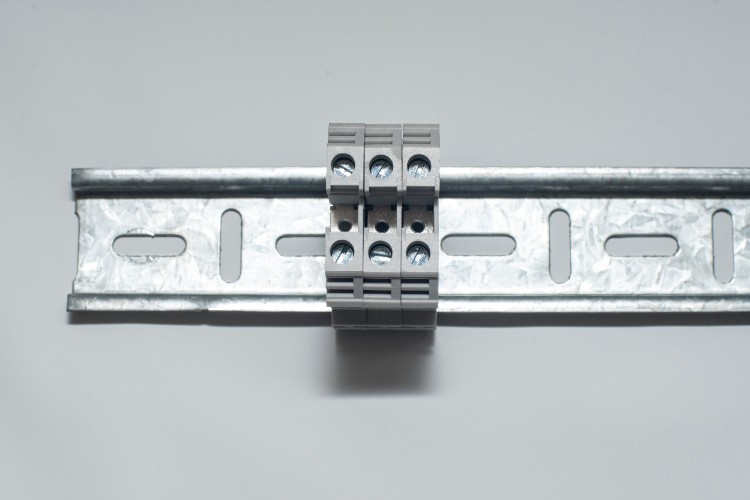

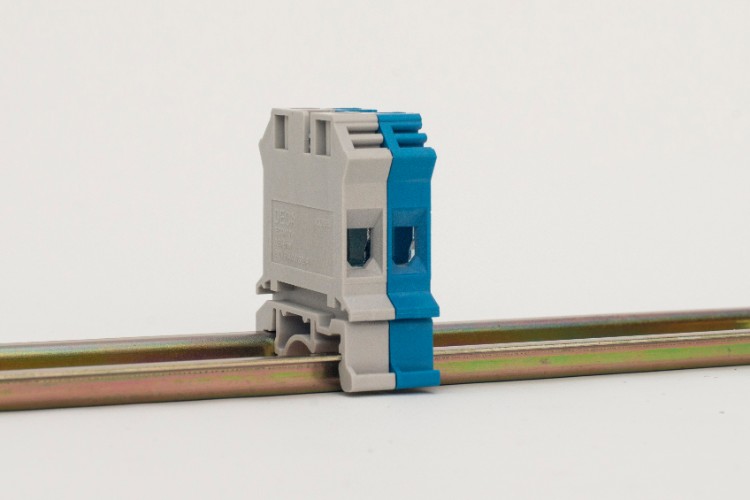

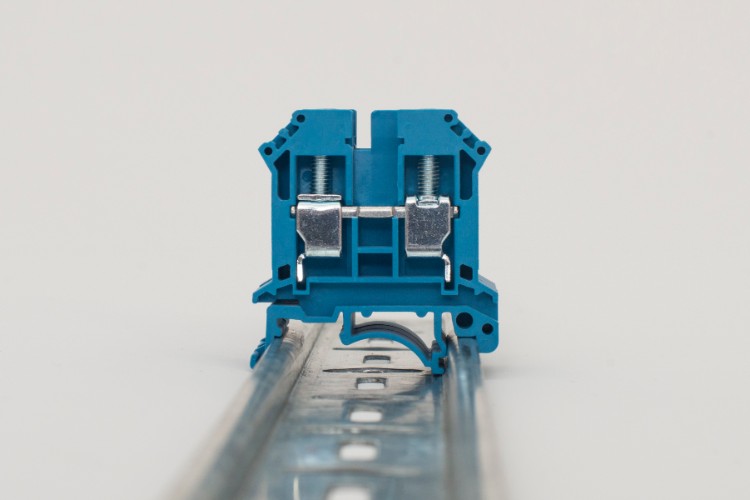

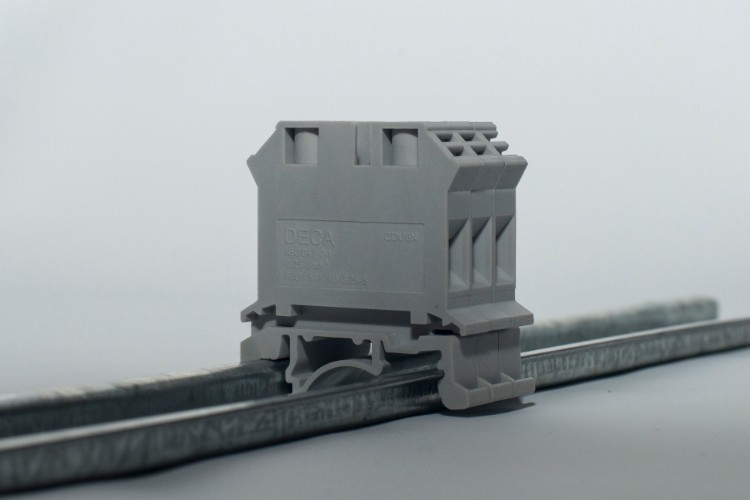

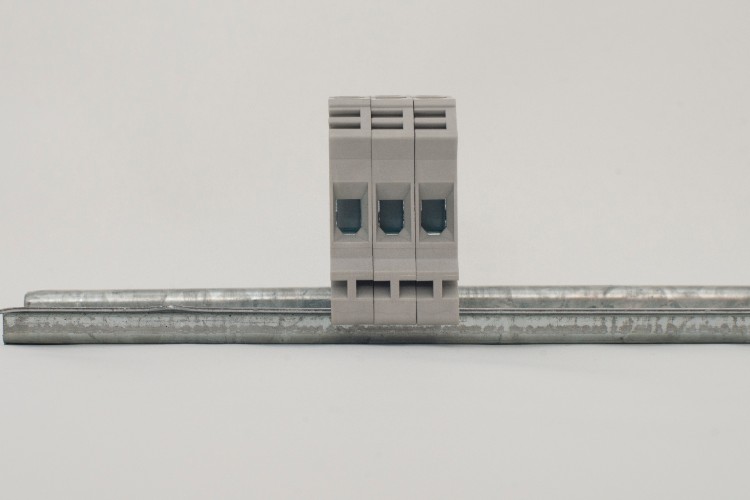

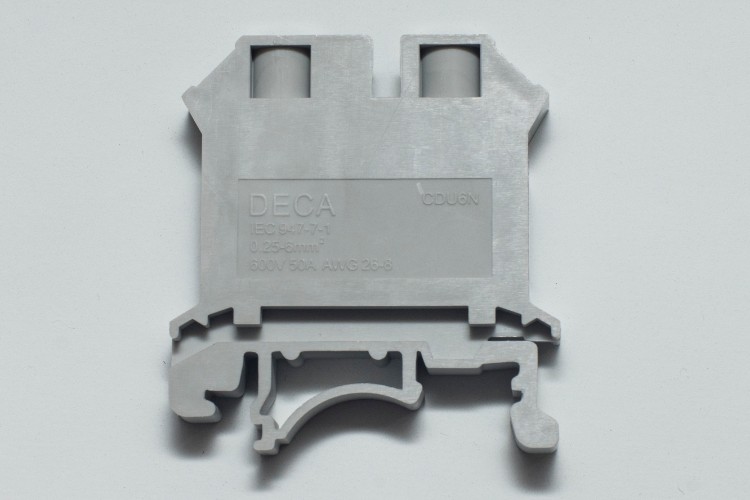

Bornes de conexión de paso con contactos a tornillos Modelo CDU 2.5N
Especificaciones Técnicas
| Especificaciones | 2.5 | |
|---|---|---|
| UL | Rated Voltage | 600V |
| UL | Rated Current | 20A |
| UL | Wire Size | AWG 12-28 |
| CSA | Rated Voltage | 600V |
| CSA | Rated Current | 20A |
| CSA | Wire Size | AWG 12-28< |
| IEC | Rated Voltage | 800V | IEC | Rated Current | 24A | IEC | Wire Size | 0.5-2.5mm² |
| Insulating impulse voltage withstand | 8KV | |
| Pollution degree | 3 | |
| Torque | 7 | |
| Clamping Screw | M2.6 | |
| Insulation Stripping Length | 8-10mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 5x42.5x47 |
| Rail Dimensions | For TS35x15 | 5x42.5x54.5 |
Accesorios
| Accesorios | SEW35, CEW35/2, CEP6, CQV2.5/2, CQV2.5/3, CQV2.5/4, CQV2.5/10, CQB2.5/2, CQB2.5/3, CQB2.5/10, WSS2.5, W5, W5Z, W5K, TPS2.3(Ø2.3), TP2.3, DP1, AD1, DS3 |
|---|
