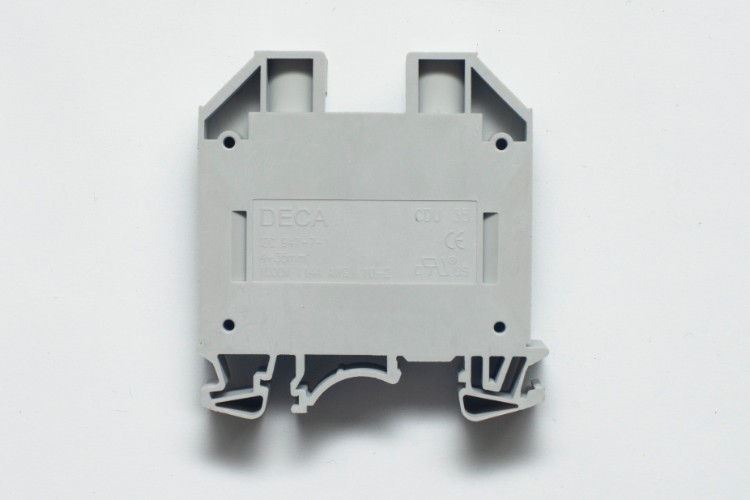

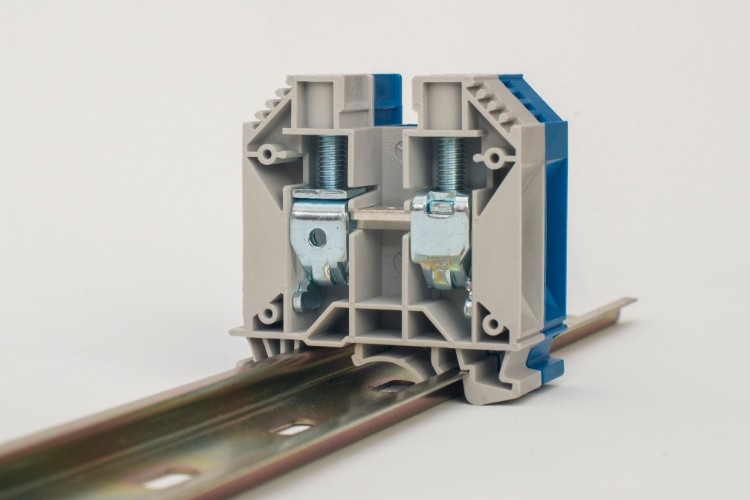

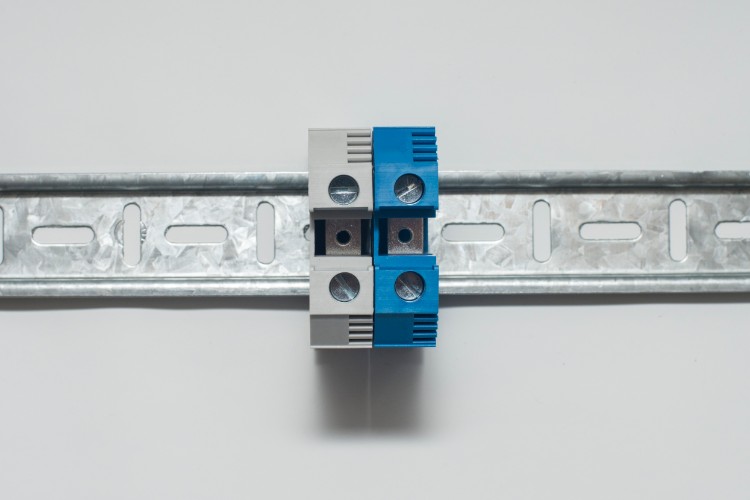

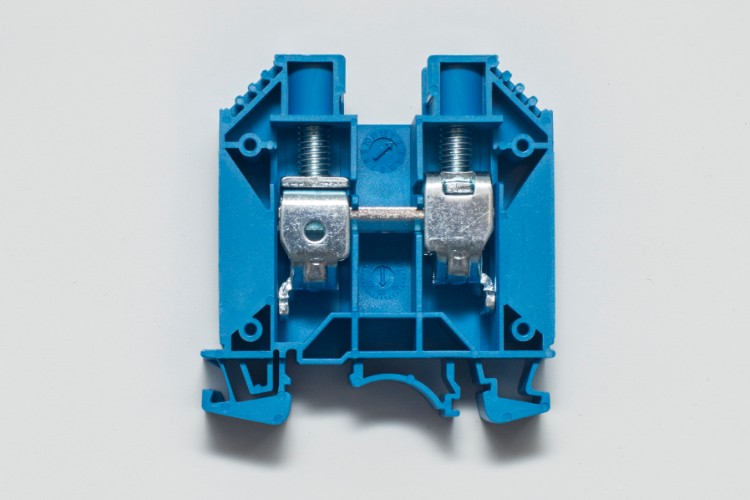

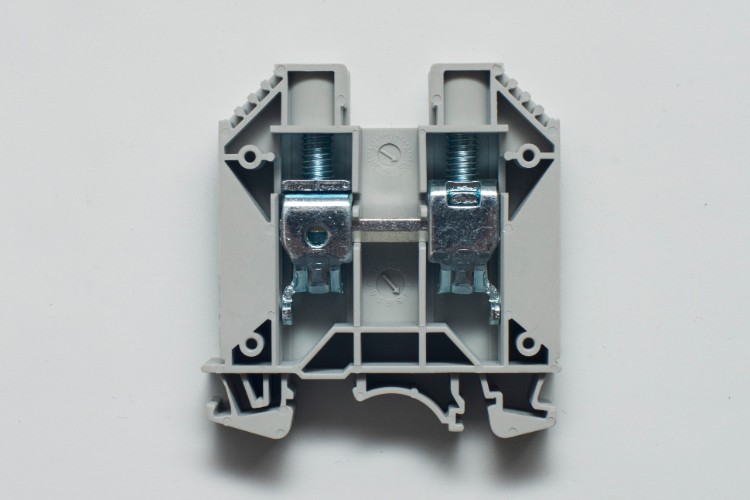

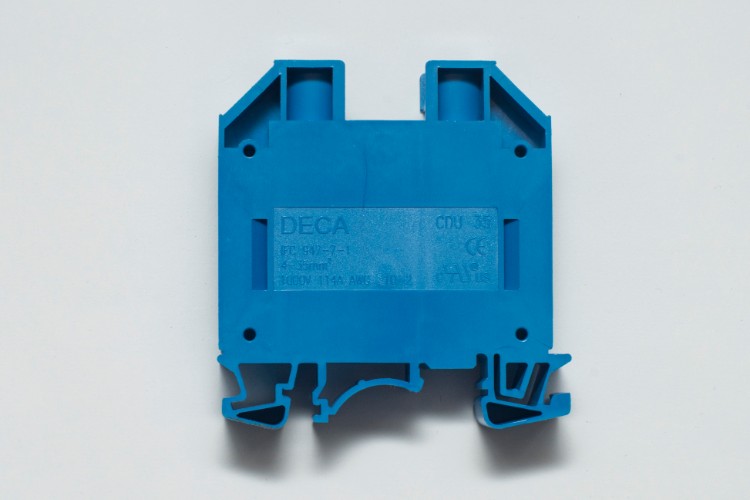

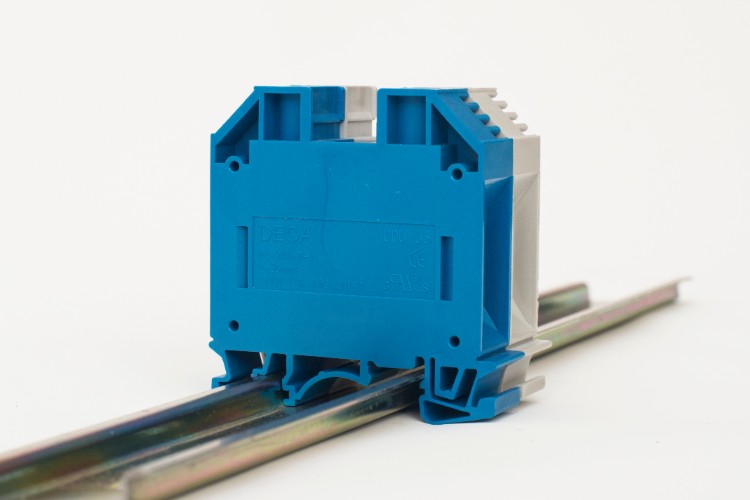

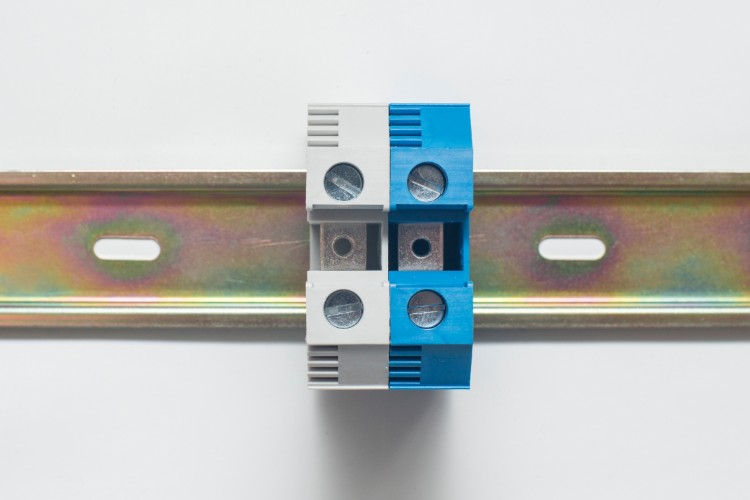

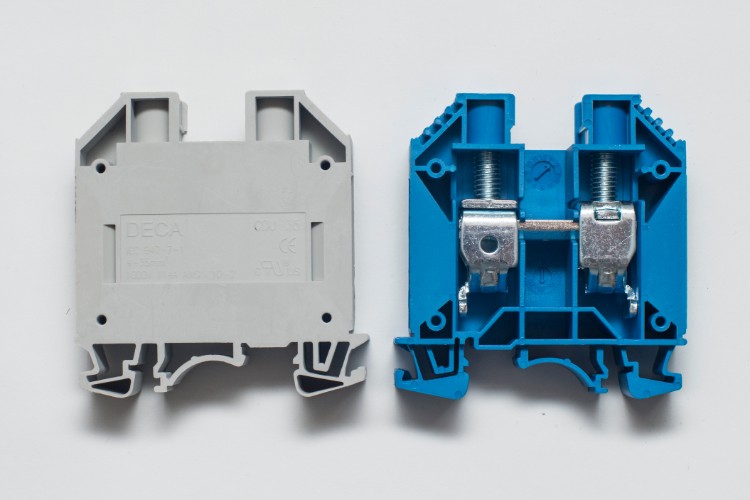

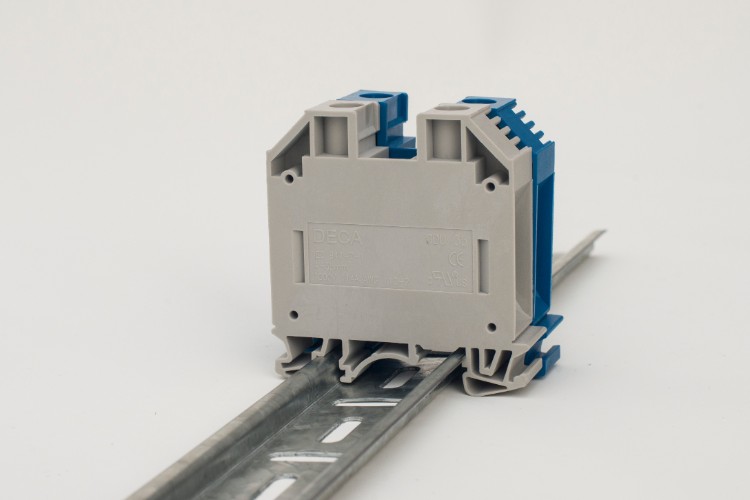

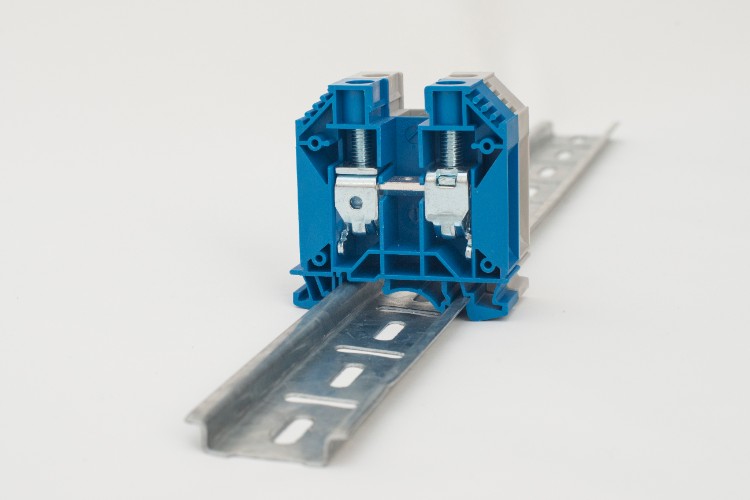

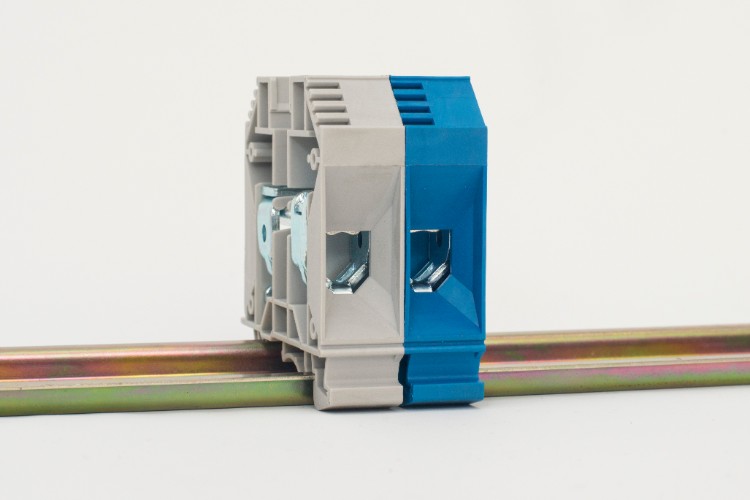

Bornes de conexión de paso con contactos a tornillos Modelo CDU 35
Especificaciones Técnicas
| Especificaciones | cdu35 | |
|---|---|---|
| UL | Rated Voltage | 1000V |
| UL | Rated Current | 114A |
| UL | Wire Size | AWG 2-10 |
| CSA | Rated Voltage | 1000V |
| CSA | Rated Current | 114A |
| CSA | Wire Size | AWG 2-10 |
| IEC | Rated Voltage | 1000V | IEC | Rated Current | 125A | IEC | Wire Size | 4-35mm² |
| Insulating impulse voltage withstand | 8KV | |
| Pollution degree | 3 | |
| Torque | 51 | |
| Clamping Screw | M6 | |
| Insulation Stripping Length | 16-18mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 16x60x63.5 |
| Rail Dimensions | For TS35x15 | 16x60x71 |
Accesorios
| Accesorios | "SEW35, CEW35/1, CEP2, CQV35/2, CQV35/3, CQV35/4, CQB35/2, CQB35/3, CQB35/10,WS-35, W6, W6Z, W6K, W8, W8Z, W8K, TPS4(Ø4), TP4, DP1, AD2. DS6 |
|---|
