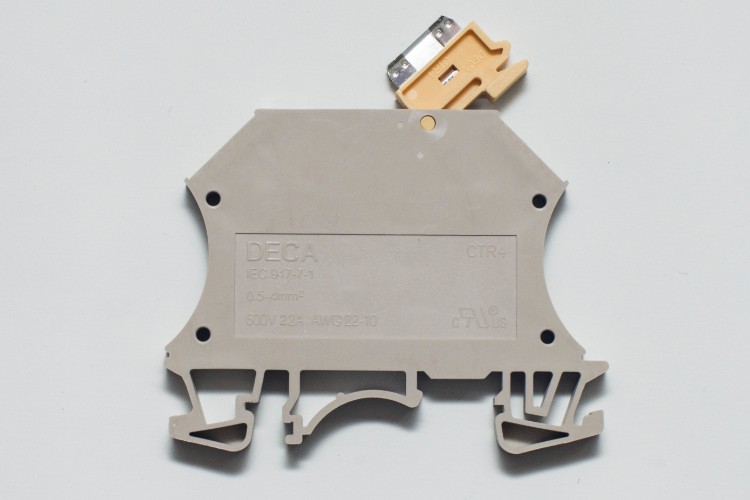

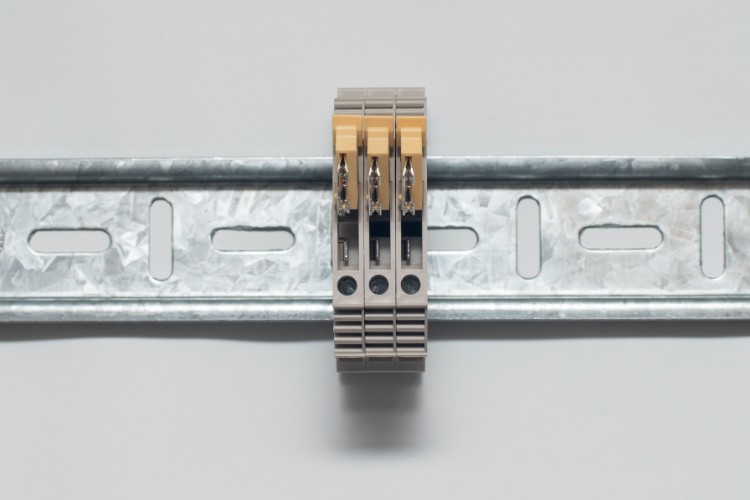

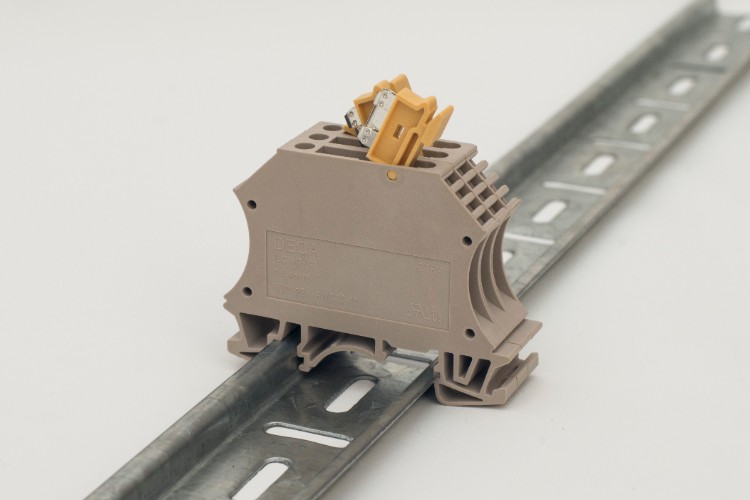

Borne de conexión seccionable a cuchilla con contactos a tornillos Modelo CTR 4
Especificaciones Técnicas
| Especificaciones | 4 | |
|---|---|---|
| UL | Rated Voltage | 600V |
| UL | Rated Current | 22A |
| UL | Wire Size | AWG 10-22 |
| CSA | Rated Voltage | 600V |
| CSA | Rated Current | 30A |
| CSA | Wire Size | AWG 10-22 |
| IEC | Rated Voltage | 800V |
| IEC | Rated Current | 22A |
| IEC | Wire Size | 0.5-4mm² |
| Insulating impulse voltage withstand | 6KV | |
| Pollution degree | 3 | |
| Torque | 6 | |
| Clamping Screw | M3 | |
| Insulation Stripping Length | 10-12mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 6x60x47.5 |
| Rail Dimensions | For TS35x15 | 6x60x55 |
Accesorios
| Accesorios | SEW35, CEW35/2, CEP1, CEP5, CQB4/2, CQB4/3, CQB4/10, W6, W6Z, W6K, W8, W8Z, W8K, TPS2.0(Ø2), TPS2.3(Ø2.3), TP2.0, TP2.3, CSD4, CSI4, DP1, AD1, DS3 |
|---|
