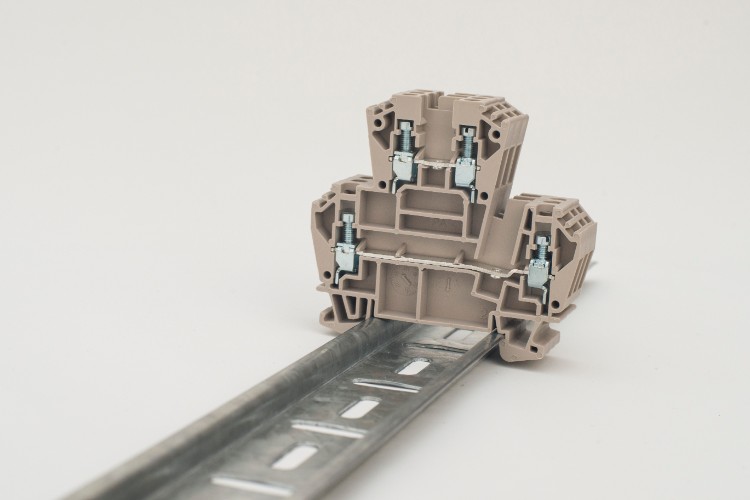

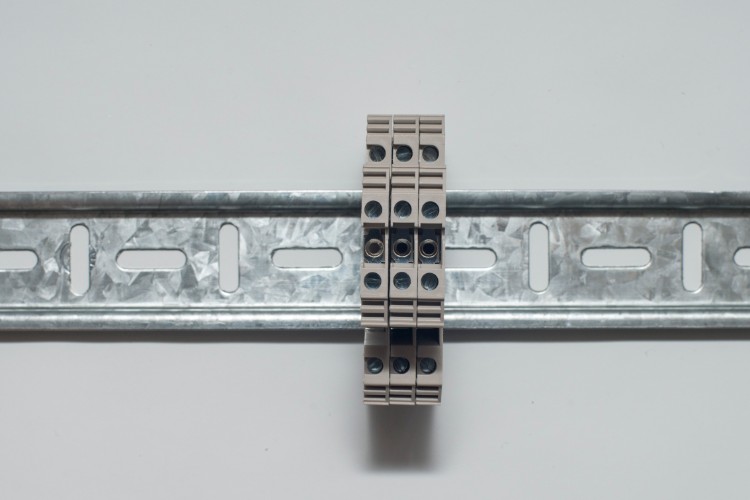

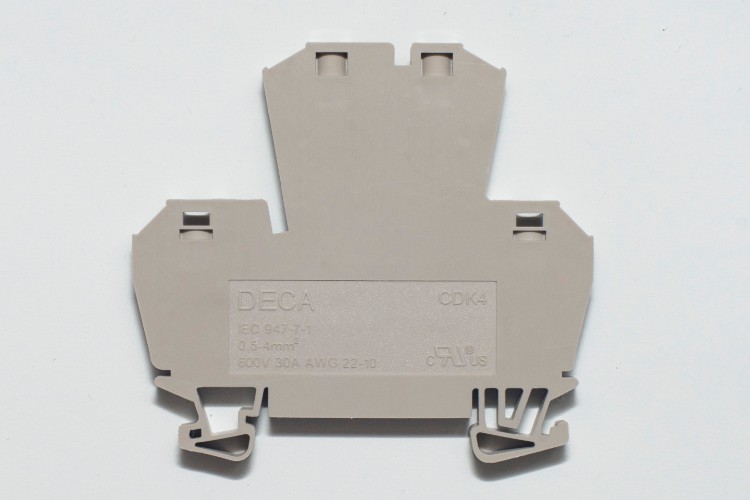

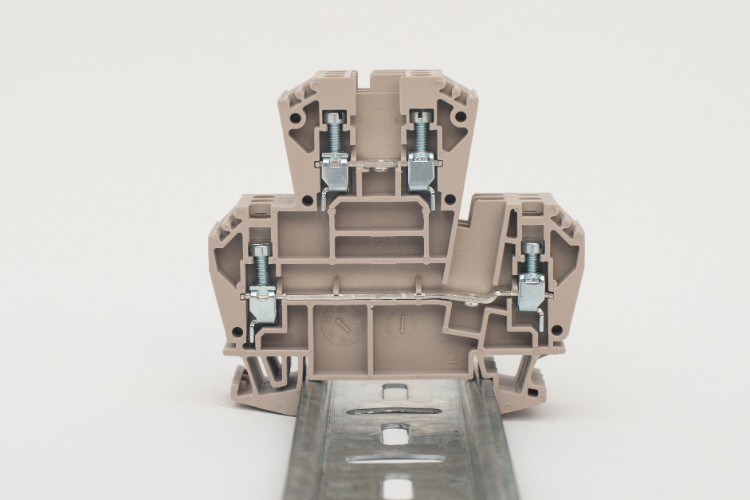

Borne de conexión doble nivel con contactos a tornillos Modelo CDK 4
Especificaciones Técnicas
| Especificaciones | 4 | |
|---|---|---|
| UL | Rated Voltage | 600V |
| UL | Rated Current | 30A |
| UL | Wire Size | AWG 10-22 |
| CSA | Rated Voltage | 600V |
| CSA | Rated Current | 30A |
| CSA | Wire Size | AWG 10-22 |
| IEC | Rated Current | 32A |
| IEC | Wire Size | 0.5-4mm² |
| Pollution degree | 3 | |
| Torque | 8 | |
| Clamping Screw | M3 | |
| Insulation Stripping Length | 6mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 6x69x63.5 |
| Rail Dimensions | For TS35x15 | 6x69x71 |
Accesorios
| Accesorios | SEW35, CEW35/2, CEP3, CQV4/2, CQV4/3, CQV4/4, CQV4/10, CQB4/2, CQB4/3, CQB4/10, WSS4, W6Z, W6K, DS3 |
|---|
