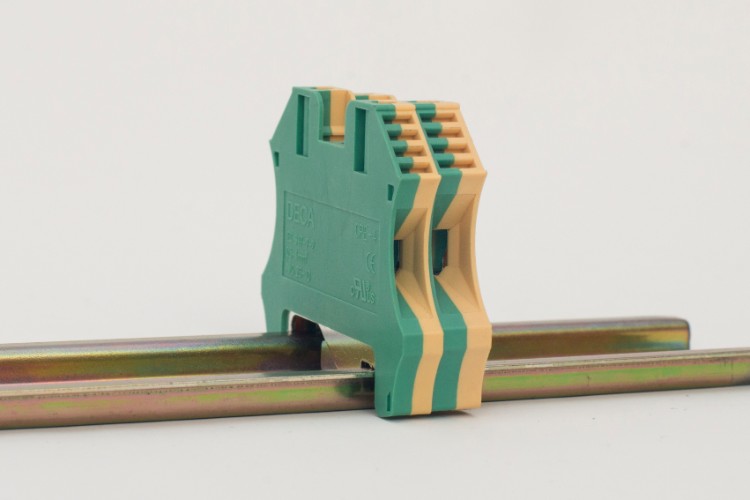

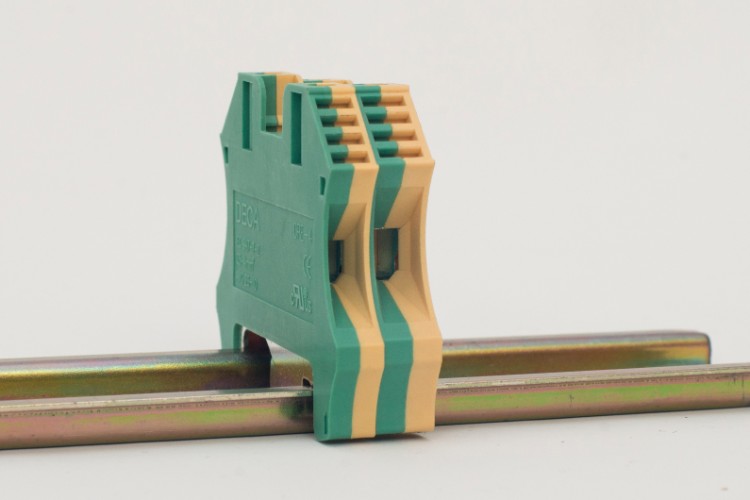

Bornes de conexión a tierra con pie metálico y contactos a tornillos Modelo CPE 4
Especificaciones Técnicas
| Especificaciones | 4 | |
|---|---|---|
| UL | Wire Size | AWG 10-26 | CSA | Wire Size | AWG 10-26 |
| IEC | Rated Voltage | 1000V | IEC | Wire Size | 0.5-4mm² |
| Insulating impulse voltage withstand | 8KV | |
| Pollution degree | 3 | |
| Torque | 8.5 | |
| Clamping Screw | M5 | |
| Insulation Stripping Length | 10-14mm | |
| Material / Available Color |  | |
| Rail Dimensions | For TS35x7.5 | 6x57x47.5 |
| Rail Dimensions | For TS35x15 | 6x57x55 |
Accesorios
| Accesorios | SEW35, CEW35/2, CQB4/2, CQB4/3, CQB4/10, W6, W6Z, W6K, W8, W8Z, W8K, DP1, AD1, DS3 |
|---|
